High-Performance Domestic Alternative: A Comprehensive Analysis of the 2.4GHz RF Front-End Chip AT2401C

In the field of wireless communications, the Radio Frequency Front-End (RFFE) is a core component determining signal transmission distance, stability, and efficiency.

In recent years, due to fluctuations in the global chip supply chain, imported RF front-end chips like the RFX2401C often face shortages and extended lead times.

Against this backdrop, the emergence of the domestic chip AT2401C provides a high-performance, highly reliable domestic solution for 2.4GHz applications such as Zigbee and wireless sensor networks, effectively alleviating the urgent pressure of being "choked."

I. Chip Overview: A Highly Integrated RF Front-End Single Chip

The AT2401C is a fully integrated RF front-end module (FEM) designed and manufactured by Hangzhou Zhongke Microelectronics Co., Ltd., targeting Zigbee, wireless sensor networks, and other wireless systems in the 2.4GHz ISM band.

This chip utilizes CMOS technology to integrate the following key functional modules into a single microchip:

•Power Amplifier (PA): Used in the transmit chain to amplify the signal output from the RF transceiver, achieving higher transmit power.

•Low-Noise Amplifier (LNA): Used in the receive chain to amplify weak signals received by the antenna, significantly improving receiver sensitivity.

•Transmit/Receive Switch Circuit (T/R Switch): Enables fast and efficient switching between transmit and receive modes.

•Input/Output Matching Circuits: Integrated internally, ensuring 50-Ohm impedance at the RF ports and simplifying external design.

•Harmonic Filtering Circuit: Effectively suppresses harmonic interference, meeting communication regulatory requirements.

This highly integrated design makes it a complete "RF signal conditioning center," requiring very few external components to operate, greatly simplifying PCB layout design, and reducing overall system cost and size.

II. Core Advantages and Performance Characteristics

The AT2401C is not merely a simple substitute; it even surpasses foreign counterparts in several performance metrics.

1. Excellent RF Performance:

•Transmit Power: Typical saturated output power can reach +22dBm, providing strong power for long-range communication.

•Receive Gain: The low-noise amplifier has a noise figure as low as 2.7dB, offering excellent receiver sensitivity and effectively extending communication range.

•High Linearity: Meets the OQPSK modulation standard, ensuring signal transmission quality and stability.

1. Strong Reliability:

•Comprehensive ESD Protection: All ports have built-in ESD protection circuits, significantly enhancing anti-static capability, improving production yield, and product reliability in various environments.

1. Low Power Consumption and High Efficiency:

•Uses low-voltage CMOS logic control with very low standby current.

•The transmit chain operates at about 130mA when outputting +20dBm power, indicating excellent efficiency.

1. Packaging and Compatibility:

•Utilizes a compact QFN-16 (3mm x 3mm x 0.75mm) package, saving space.

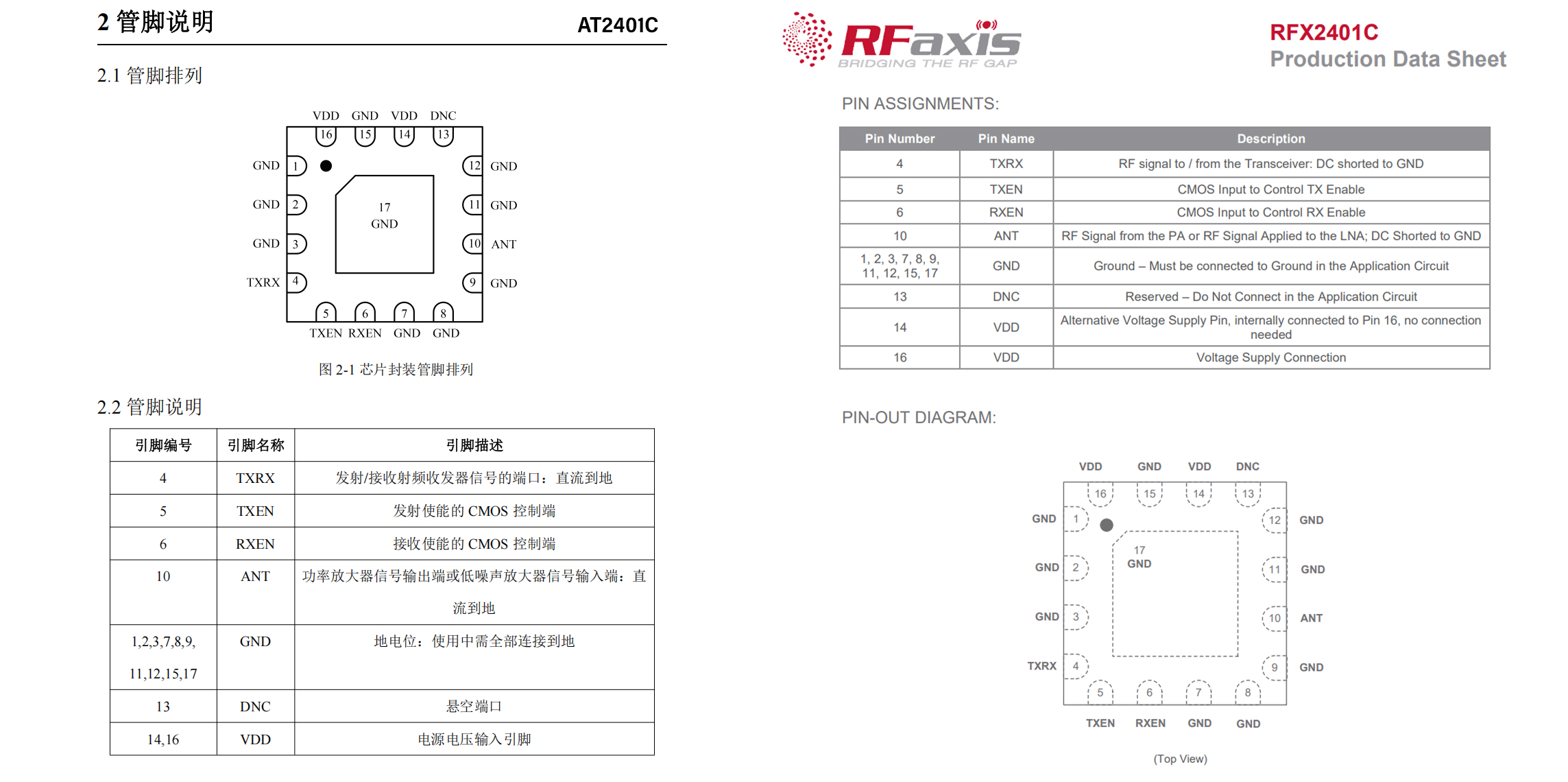

•Fully Pin-to-Pin compatible with the RFX2401C, allowing direct replacement without modifying PCB layout or peripheral circuits, significantly reducing design migration risk and cycle time.

III. Comparison with Competing Products: Why Choose AT2401C?

The comparison between AT2401C and mainstream imported chips is as follows:

Furthermore, the blog also mentions that after debugging (such as pairing with an AVX filter or adjusting capacitor matching), the AT2401C can also serve as an alternative solution for TI's CC2591/CC2592, demonstrating significant cost-performance advantages in cost-sensitive applications like smart homes and industrial automation, and can easily pass certifications like FCC/CE.

IV. Typical Application Areas

The widespread application of the AT2401C benefits from its excellent performance and integration:

•Smart Home: Zigbee devices such as smart lights, smart sockets, curtain controllers.

•Industrial Automation & Sensor Networks: Industrial data acquisition, remote monitoring, sensor data backhaul.

•Wireless Audio Systems: 2.4GHz wireless microphones, audio transmission equipment.

•RF4CE Protocol Remotes: High-end appliance remotes, smart remotes.

•Any other wireless systems in the 2.4GHz band.

V. Summary

AT2401C is a chinese produced RF front-end chip with excellent comprehensive performance. With its high performance, high integration, high reliability, and perfect pin compatibility, it has become the preferred solution to replace imported chips such as RFX2401C, effectively solving the supply chain shortage problem.

For engineers and procurement personnel seeking stable supply and cost-effective RF front-end solutions, AT2401C is not only a "firefighter", but also a high-quality choice that is trustworthy for the long term. Its maturity and application indicate that domestic RF chips have the strength to compete internationally in the 2.4GHz field, laying a solid foundation for the autonomy and controllability of China's wireless communication products.
